Stainless Steel Disc Separator Module 45KW Two-phase For Milk Beer Beverages Pharmaceuticals, And Chemicals

  • Stainless Steel Disc Separator Module 45KW Two-phase For Milk Beer Beverages Pharmaceuticals, And Chemicals
  • Stainless Steel Disc Separator Module 45KW Two-phase For Milk Beer Beverages Pharmaceuticals, And Chemicals
Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number DBY616
Minimum Order Quantity 1 set
Price USD10000-100000/set
Packaging Details Standard Wooden Case
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Disc Separator Module 45KW Two-phase For Milk, Beer, Beverages, Pharmaceuticals, And Chemicals Voltage 220V / 380V /460V
Power 45 Kw Weight 3400 Kg
Dimension(L*W*H) 2380*1730*2060 Mm Material Food Standard Stainless Steel
Highlight

Pharmaceuticals Disc Separator Module

,

Two-phase Disc Separator Module

,

Chemicals Disc Separator Module
Leave a Message
Product Description



Stainless Steel Disc Separator Module 45KW Two-phase For Milk, Beer, Beverages, Pharmaceuticals, and Chemicals

Product Application

 DB series disc Separators are full automatic control equipments which have high speed, run steady, hermetic and high efficiency. All parts & components contacting materials are made of stainless steel, can effectively minimize chemical reaction between the materials to be separated and part surface contacted. The separated light phase material will be output by centripetal pump, maximum output pressure can get to 0.3MPa. This machine is fed upper, so it has very low inlet pressure for materials.

Stainless Steel Disc Separator Module 45KW Two-phase For Milk Beer Beverages Pharmaceuticals, And Chemicals 0

SPECIFICATIONS FOR DBY616 SEPARATOR

Main operating parameters
Treatment capacity
L/H
5000-15000
Inlet pressure
Mpa
0.2
Outlet pressure
Mpa
0.1-0.4
Motor power
Kw
45
Equipment
Weight
Kg
3400
Outline dimension
mm
2380x1730x2060

Operation Principle

The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the material passes the separation partition consists of disk string, the solid in higher specific gravity (heavy phase) will move toward the big end along disk wall, accumulate at the residue-settling area, and be discharged regularly; The liquid in lower specific gravity (light phase) will move toward the small end along disk wall, then assemble at the small centripetal pump, and output by it.





0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve 0

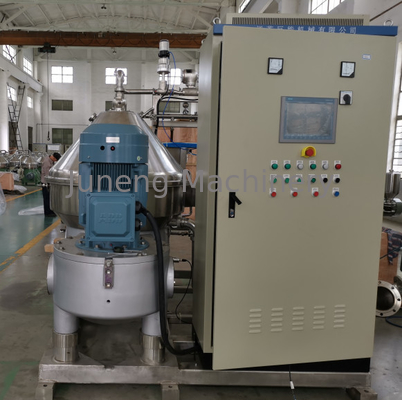

Juneng Disc Separator on site

Stainless Steel Disc Separator Module 45KW Two-phase For Milk Beer Beverages Pharmaceuticals, And Chemicals 2

Main Features

1) Stable rotating

2) Low noise

3) High separating effect

4) Keep the original nutrition and flavor

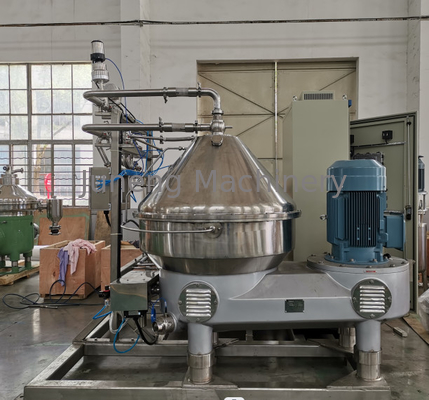

Detailed Images
Disc Separator Centrifuge For Purification Of Cell Proteins Blood Plasma Separation 1
Our Service
Stainless Steel Disc Separator Module 45KW Two-phase For Milk Beer Beverages Pharmaceuticals, And Chemicals 4
Stainless Steel Disc Separator Module 45KW Two-phase For Milk Beer Beverages Pharmaceuticals, And Chemicals 5

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Stainless Steel Disc Separator Module 45KW Two-phase For Milk Beer Beverages Pharmaceuticals, And Chemicals 6
Packaging
Size
123 (L) * 123(W) * 219 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Our company

Disc Separator Centrifuge For Purification Of Cell Proteins Blood Plasma Separation 9
Disc Separator Centrifuge For Purification Of Cell Proteins Blood Plasma Separation 10

Product Name
Juneng Machinery Factory
Separator
Jiangsu Juneng Machinery Co.,Ltd(South)
Centrifuge
Juneng Machinery (China) Co.,Ltd(Nanjing)
Filter
Jiangsu Juneng Machinery Co.,Ltd(North)
Dryer
Juneng Machinery (China) Co.,Ltd(Nanjing)
Pump
Jiangsu Juneng Machinery Co.,Ltd(South)

Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.

The Company now has its 4 production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation
