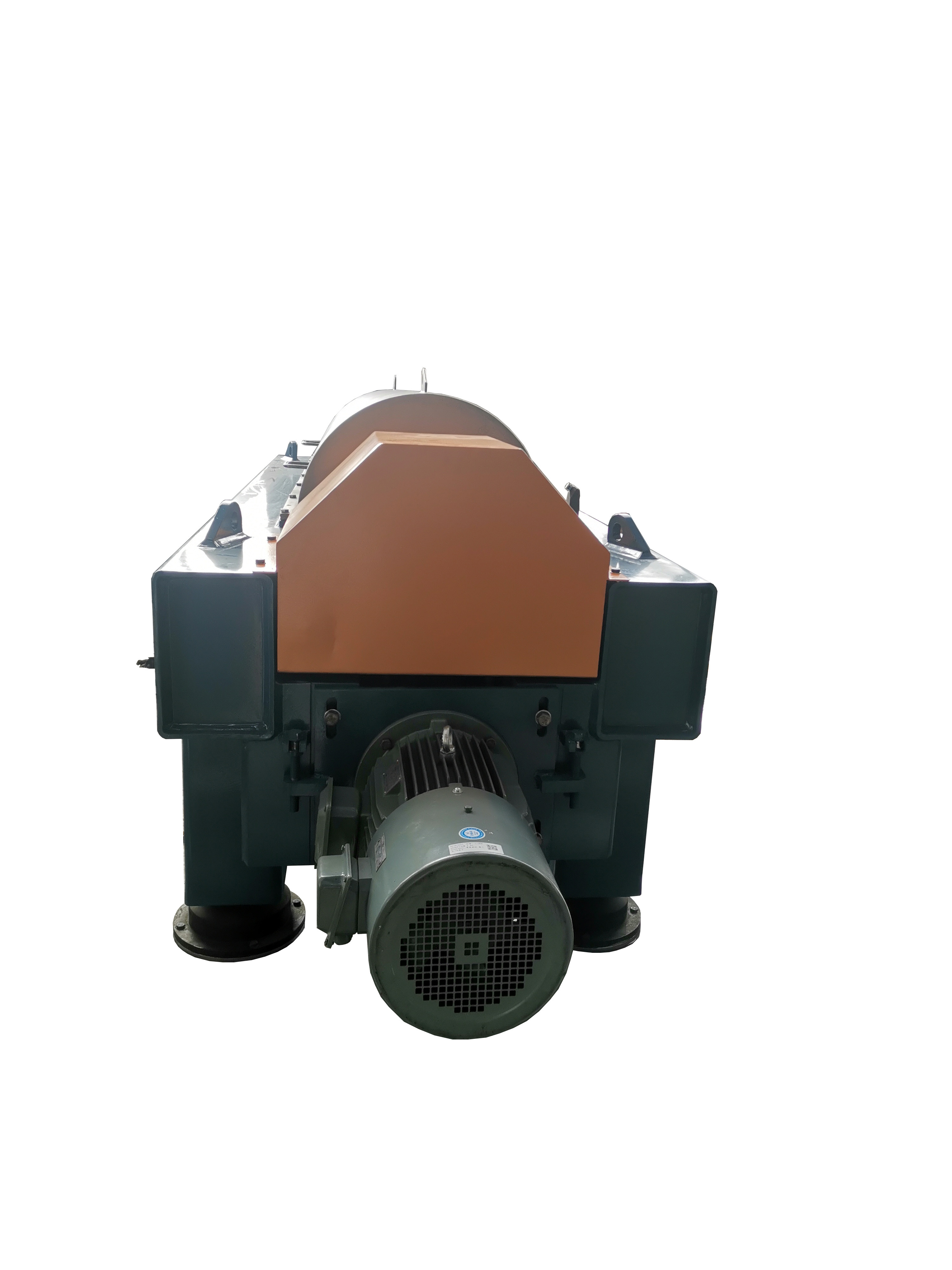

Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Juneng |
| Certification | CE/ISO |
| Model Number | LW |
| Minimum Order Quantity | 1 set |
| Price | USD15000~100000/set |
| Packaging Details | seaworthy packing |
| Delivery Time | 30-50 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Sludge Dewatering Horizontal Screw Decanter Centrifuge Stainless Steel | Type | Centrifuge |
|---|---|---|---|
| Condition | New | Core Components | PLC，Motor, Pressure Vessel, Bearing |
| Voltage | Design For Different Country | Power | According To The Model |
| Weight | According To The Model | Dimension(L*W*H) | Depend On Model Choosing |
| Drum Diameter | Depend On Model Choosing | ||
| Highlight | horizontal decanter screw Steel centrifuge,Sludge Dewatering decanter Steel centrifuge,Stainless Steel decanter centrifuge |
||
Product Description
Sludge dewatering horizontal screw decanter centrifuge stainless steel
Introduction
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by our factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.
The centrifuges which made by our factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.
Advantages :
1. Lower cake transportation costs due to very dry solids
2. Better recovery of nutrients due to very high separation efficiency
3. Lower fresh water consumption compared to other processes
4. Continuous and fully automatic operation
5. 24 h operating reliability
6. Optimum wear protection
7. Energy saving design
8. Easy to operate
9. Easy to maintain
10. Simple assembly/dismantling
Application
1. Washing and dehydration of starch
2.Dehydration of soybean wheat proteins
3.Dehydration of fish meal and fish
4.Dehydration of brewers' grains
5.Purification of juice and dehydration of fruit fiber
6.Separation and purification of animal and vegetable oil
7.Separation and purification of coal tar
8.Clarification and purification of gypsum
9.Classification and dehydration of starch
10.Classification and dehydration of Kaolin and graphic
11.Classification and dehydration of dyes and pigments
Product structure and operation principle
Production structure : Main body of scroll discharge centrifuge are consist of column - taper drum , helical pusher , speed difference system , shaft seat , frame , encloser , main and auxiliary motor and electric system . Main motor drive drum , auxiliary motor drive planetary gear differential , so that create different speed between drum and screw , then carry on continual separation in 2 4 hours under the strong centrifugal force which produced by the high speed rotate of separator .
Operation principle : Drum and screw rotate at a certain different speed . The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor . The resulting centrifugal forces make the solids collect on the wall of the drum . Screw conveyor continual moving the solid to conical end of drum , discharge through discharge port after dried in the dry area , however , light liquid forms the inner layer and effusion through overflow port of drum , then discharge through liquid outlet port .
Main specification and technological parameters
*** F: Ex-proof, W:Waste water, S: Three phase FS: Ex-- proof and three phase
Produce Process
Separator process workshop
Drum processing
Process center
Ultrasonic testing
Dynamic balancing test
Assembling
Application area
Packing & Delivery
